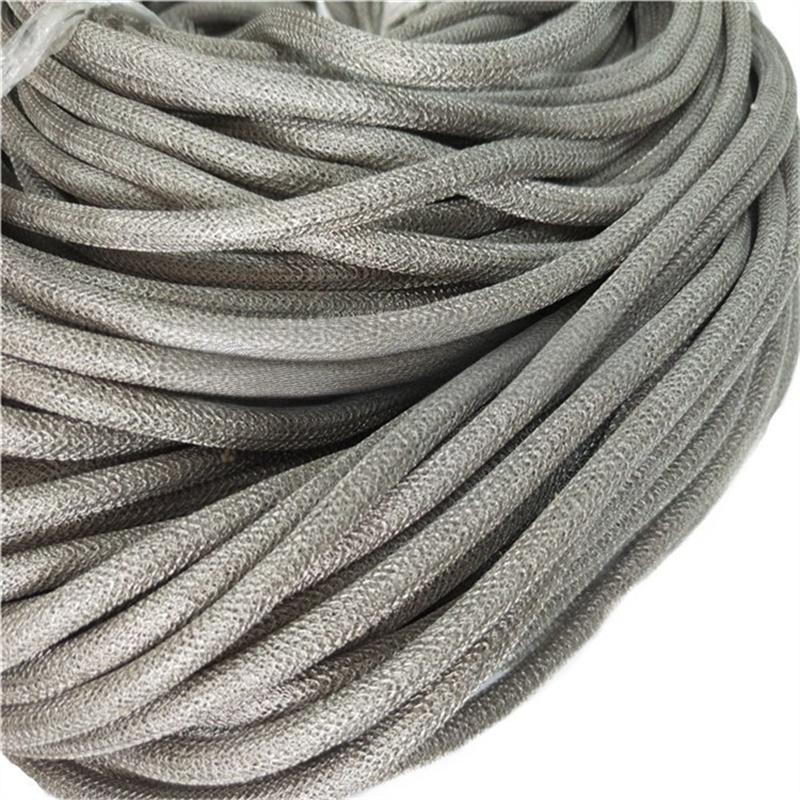

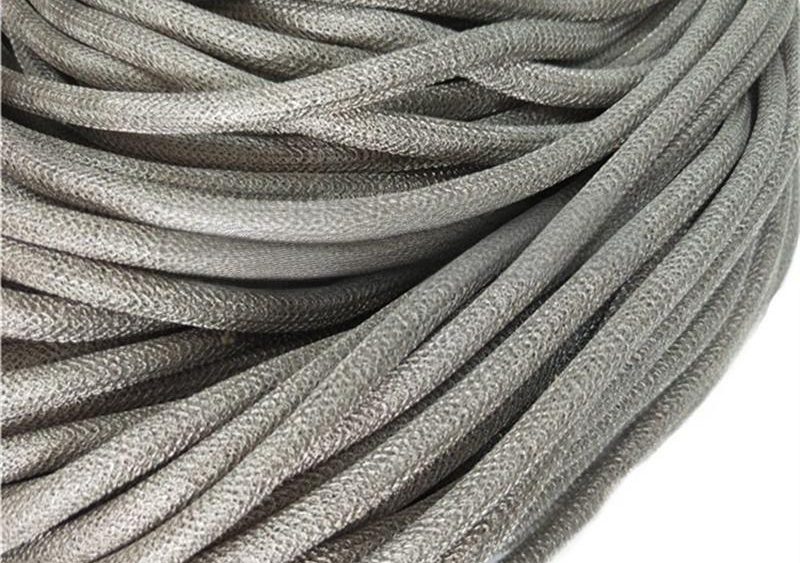

As a professional manufacturer of metal mesh products, at HIGHTOP Metal Mesh specializes in the production of high-performance materials for harsh environments. One of our most advanced and durable products is Monel wire mesh, a type of corrosion-resistant mesh made from a nickel-copper alloy. We will briefly introduce the production process, common grades, application areas, and advantages of Monel alloy wire mesh. If you want to know more about monel alloy wire mesh, please contact us and we have professional staff to help you.
1. Production Process of Monel Wire Mesh
The production of Monel wire mesh involves several precise and technologically advanced steps:
Raw Material Preparation:
Monel alloys are primarily composed of nickel (~67%) and copper (~30%), with minor additions of iron and manganese. The alloy is vacuum melted to ensure purity, then hot rolled into wire rods. These rods are cold-drawn to achieve the required wire diameter, typically ranging from 0.05 mm to 2.0 mm.
Wire Drawing Process:
Multi-pass drawing is conducted with intermediate annealing at temperatures between 800℃ and 1000℃. This process helps eliminate work hardening and ensures the wire maintains its flexibility and mechanical properties.
Weaving Process:
Depending on the mesh specification, the wires are woven using plain, twill, or dense weave methods. Mesh sizes can range from 1 to 400 mesh, tailored to the application needs.
2. Common Grades of Monel Wire Mesh
Two main grades are commonly used in manufacturing Monel wire mesh:
- Monel 400: Contains 63-70% Ni, 28-34% Cu, and ≤2.5% Fe. It offers excellent seawater corrosion resistance and is commonly used in marine engineering and chemical filtration systems.
- Monel K500: In addition to the basic Monel 400 composition, it includes 2.3-3.15% Al and 0.35-0.85% Ti, which provide additional strength through aging hardening. Its tensile strength can reach up to 1000 MPa, making it ideal for high-stress environments such as oil drilling.
3. Main Application Fields
a. Marine Engineering
Monel wire mesh is extensively used in marine environments due to its outstanding resistance to chloride corrosion and biofouling:
- Seawater Filtration: Applied in ship desalination systems.
- Submarine Cable Protection: Used as an armor layer to resist corrosion and prevent biological attachment.
Example: The US Navy uses Monel 400 wire mesh in submarine seawater pump filters, achieving a service life of over 20 years.
b. Chemical and Petrochemical
The chemical industry values Monel mesh for its durability in aggressive environments:
- Corrosive Media Filtration: Suitable for filtering hydrofluoric acid and sulfuric acid.
- Catalyst Carrier: Used as support mesh in reactors.
Example: DuPont uses Monel wire mesh for filtering hydrogen fluoride gas in PTFE production systems.
c. Oil and Gas Industry
In high-pressure, hydrogen sulfide-rich environments, Monel wire mesh excels:
- Downhole Tools: Monel K500 is used in sand control screens for its resistance to stress corrosion and pressure.
Example: Sand control screens in Saudi Aramco oil fields using Monel K500 last three times longer than stainless steel alternatives.
d. Aerospace
- Fuel Filtration Systems: Used in aircraft fuel filters to resist kerosene corrosion.
- Engine Components: Applied in sealing gaskets for high-temperature zones.
e. Medical and Food Processing
- Pharmaceutical Equipment: Filters high-purity liquids with no metal ion contamination.
- Food Industry: Used for shellfish grading and screening applications.
4. Core Advantages
– Corrosion Resistance: Monel’s performance in marine and acidic environments is unmatched. It shows only 1/10 the corrosion rate of 316 stainless steel in seawater.
– High Strength: Particularly in its K500 grade, Monel can reach tensile strengths close to high-strength steels.
– Biological Resistance: The copper content naturally resists marine organism attachment, reducing maintenance.
– Temperature Versatility: Usable in environments ranging from -200℃ to +600℃.
– Cost-effective vs. Titanium: Monel is easier to process and about half the price of titanium, while offering comparable corrosion resistance.
5. Considerations
While Monel wire mesh has many benefits, its high cost (3 to 5 times that of stainless steel) requires a value-based evaluation for long-term projects. Also, when connected to dissimilar metals like carbon steel, insulation measures should be taken to prevent galvanic corrosion.
At HIGHTOP Metal Mesh, we support custom orders, maintain large inventories, and ensure fast delivery. With over 20 years of production experience, we continue to provide high-quality solutions for industries worldwide.
Monel wire mesh stands as a critical material for demanding applications, offering unmatched durability and performance where ordinary metals fall short.
