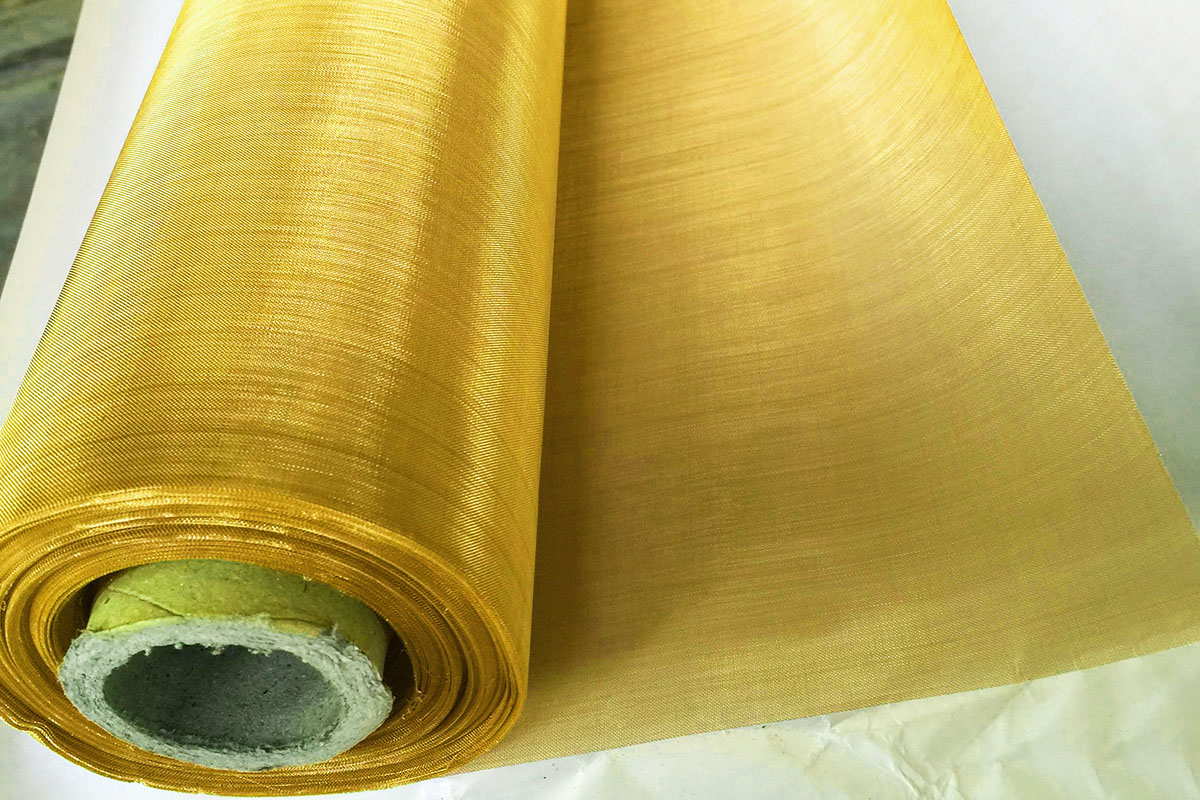

Brass Wire Mesh

Brass Wire Mesh

Brass Wire Mesh

Brass Wire Cloth

Brass Wire Mesh Quick Details:

  • Material: Brass
  • MOQ: 1 roll
  • Woven style: Plain and Twill Weave
  • Mesh count: 6-200mesh
  • Diameter: 0.7-0.05mm
  • Roll Width: 0.6-1.3m
  • Roll Length: 10-100m
  • Packaging Details: inner kraft paper, outside plastic cloth, put into wooden pallet or case
  • Usage: EMI shielding, sieving diversified pellet, powder, porcelain clay and glass, chinaware printing, filtering liquid and gas, architectural applications.
  • Delivery Time: 5 days for stock material
GET QUOTE

DETAIL INFORMATION

Brass wire mesh has good corrosion and wear resistance. Brass is a copper alloy mainly composed of copper and zinc. When stainless steel material is not available, brass mesh can be used instead because it has excellent resistance to abrasion and corrosion. They also have a lower electrical conductivity compared to copper wire mesh. Woven brass mesh screen is used for several applications such as:

  • Liquid and Gas filtration
  • Architectural and Decorative application
  • Sieving of Pellets and Powder
  • Porcelain clay and glass
  • EMI, RFI shielding
  • Brass window screen

Hightop Metal Mesh manufactures two types of woven brass mesh screens:

  • Common brass – 65% copper and 35% zinc.
  • Red brass – 80% copper and 20% zinc

brass wire mesh

brass mesh

Woven Brass Wire Mesh Screen Specification

Mesh Wire Dia.(mm) Opening (mm)
SWG MM Inch
6 22 0.711 0.028 3.522
8 23 0.61 0.024 2.565
10 25 0.508 0.02 2.032
12 26 0.457 0.018 1.66
14 27 0.417 0.016 1.397
16 29 0.345 0.014 1.243
18 30 0.315 0.012 1.096
20 30 0.315 0.0124 0.955
22 30 0.315 0.0124 0.84
24 0 0.315 0.0124 0.743
26 31 0.295 0.0116 0.682
28 31 0.295 0.0116 0.612
30 32 0.247 0.011 0.573
32 33 0.254 0.01 0.54
34 34 0.234 0.0092 0.513
36 34 0.234 0.0092 0.472
38 35 0.213 0.0084 0.455
40 36 0.193 0.0076 0.442
42 36 0.193 0.0076 0.412
44 37 0.173 0.0068 0.404
46 37 0.173 0.0068 0.404
48 37 0.173 0.0068 0.356
50 37 0.173 0.0068 0.335
60×50 36 0.193 0.0076
60×50 37 0.173 0.0068
60 37 0.173 0.0068 0.25
70 39 0.132 0.0052 0.231
80 40 0.122 0.0048 0.196
90 41 0.112 0.0044 0.17
100 42 0.102 0.004 0.152
120×108 43 0.091 0.0036
120 44 0.081 0.0032 0.131
140 46 0.061 0.0024 0.12
150 46 0.061 0.0024 0.108
160 46 0.061 0.0024 0.098
180 47 0.051 0.002 0.09
200 47 0.051 0.002 0.076
Note: We can provide brass wire mesh screen with the width from 0.6m to 1.3m, and the length from 15m to 100m.

For more information on woven brass mesh screen, brass EMI shielding, brass metal mesh, please contact us today.
