Black Wire Mesh
Plain Steel Wire Mesh Quick Details:
- Usage: Filter in rubber and plastic industry, security, protection and food industry , etc
- Material:Q195 and Q235,ect
- MOQ: 1 roll

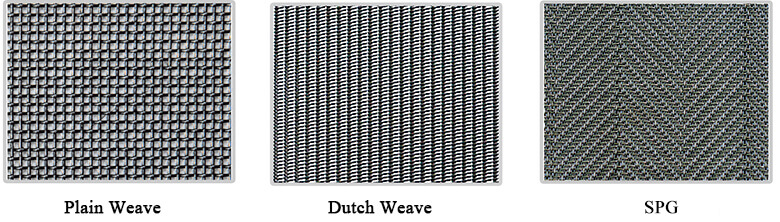

- Woven style: Plain, Twill and Dutch Weave
- Mesh : Plain and Twill Weave 5-80mesh , Dutch Weave 12×64-40x200mesh
- Diameter: 0.1-0.9mm
- Roll Width: Max 240″
- Roll Length: Max 2000′
- Packaging Details: inner kraft paper, outside plastic cloth, put into wooden pallet or case
- Delivery Time: 5 days for stock material
DETAIL INFORMATION

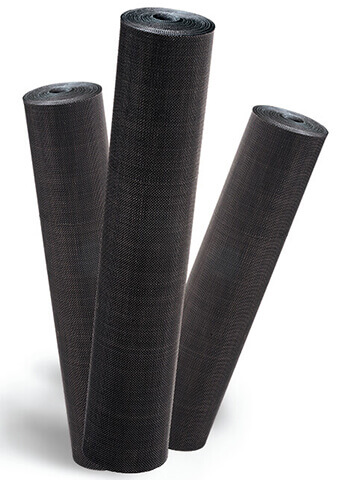

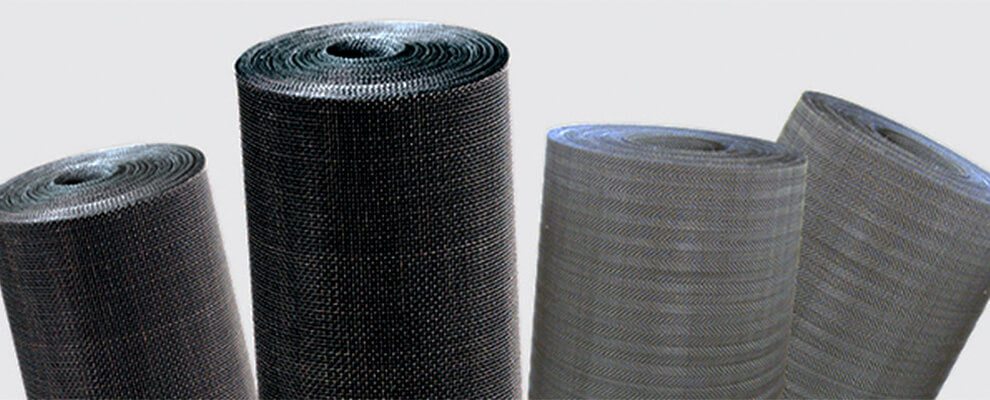

The plain steel wire mesh is a great economical choice for those who are looking for a durable and yet inexpensive wire mesh. The Plain steel wire mesh, often called as “black wire mesh” or “low carbon steel wire mesh”, is relatively inexpensive as it is made of plain steel and not heat-treated. This is ideal for clients who are looking for a strong and durable wire mesh where corrosion is not a factor as rust may set in due to its low-carbon steel mesh. The wire mesh is frequently used in fireplace screens, oil strainers and for small guards. Carbon content is up to 0.3% for mild steel making it a suitable wire to be used for welding, forming, bending and other engineering applications, as it is neither brittle nor pliable like other wire meshes. Plain steel wire mesh is commonly used as filter wire mesh in several industries including – rubber, grain and plastic.
Available wire mesh from Hebei Hightop Metal Mesh are:
- Plain Weave Black Wire Cloth – Mesh from 6 to 80
- Dutch Weave Black Wire Cloth – Mesh from 12 x 64 to 40 x 200
Plain Steel Wire Mesh Specification
| Mesh | Wire Dia.( mm) | Opening (mm) |
| 8 | 0.71 | 2.47 |
| 10 | 0.65 | 1.89 |
| 12 | 0.6 | 1.52 |
| 14 | 0.5 | 1.31 |
| 16 | 0.4 | 1.19 |
| 20 | 0.4 | 0.87 |
| 24 | 0.35 | 0.71 |
| 30 | 0.3 | 0.55 |
| 40 | 0.25 | 0.39 |
| 50 | 0.2 | 0.31 |
| 60 | 0.17 | 0.25 |
| 80X70 | 0.135 | – |
| 100X90 | 0.11 | – |
Plain Steel Wire Mesh Twill Weave Specification
| Mesh | Wire Dia.( mm) |
| 20 | 0.6 |
| 30 | 0.4 |
| 40 | 0.35 |
| 50 | 0.3 |
| 60 | 0.3 |
Plain Steel Wire Mesh Dutch Weave Specification
| Mesh | Wire Dia.( mm) |
| 12×64 | 0.58×0.64 |
| 14×88 | 0.50×0.33 |
| 24×110 | 0.36×0.25 |
| 30×150 | 0.23×0.18 |
| 40×200 | 0.18×0.13 |
